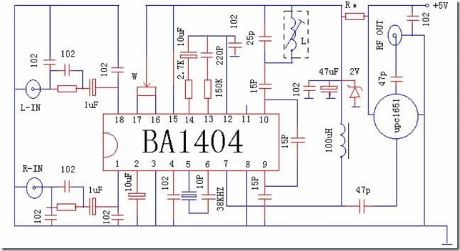

BA1404
transmitter includes onboard RF amplifier for increased transmitting
range. Operating voltage range is 1-3V, the circuit contains FM stereo
mixer, 38KHZ oscillator, FM modulator and high-frequency amplifier
monolithic integrated circuit. As the electronic newspaper BBS there
are many users requiring detailed information on the FM stereo
transmitter, so I re-collect the relevant information on the simple
discrete, merge, integrated FM stereo transmitter experiment, that
BA1404 with μpc1651 mix of the most easy to make and debug, and very
high frequency stability (relative to the previous circuit BA1404),
transmission power is increased by UPC1651RF amplifier.
